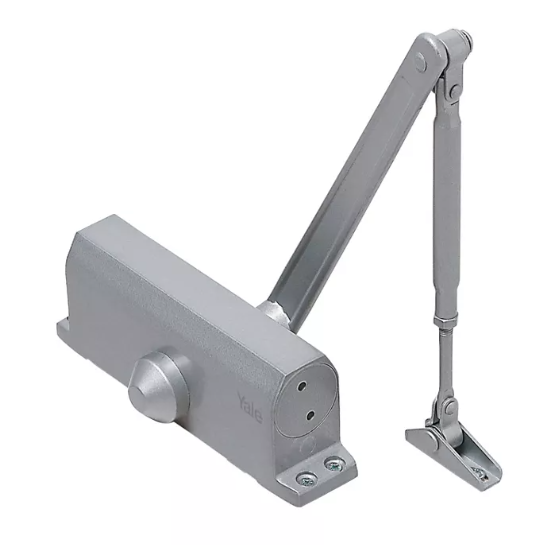

YALE Y300 - SIZE - 3 - 5

Power Sizes
Closer fixed power size range of 3, 4, 5.

Materials
High purity die-cast aluminium body. Heat treated steel rack and pinion. Stable hydraulic oil for consistent climatic operation and constant lubrication. Forged steel arms passivated against corrosion.

Mechanism
Rack and pinion design.

Hold-open
Available in this series.
Hold-open angle between 80° - 180°.
Order arm assembly separate.

Handing
Non-handed. Suitable for left or right hand doors.

Adjustment
Independent valves control closing and latching speeds.

Closing speed 180° - 10°.
Latching speed 10° - 0°.

Offset Parallel Arm
Available in this series.
Suits up to 13mm door stop.

Finish
Silver Baked Enamel - SIL
