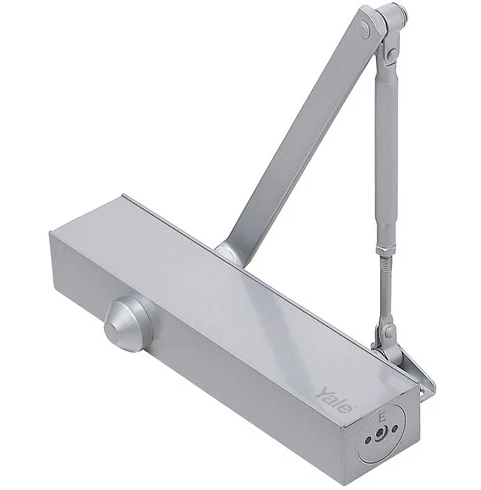

YALE Y2600 - SIZE - 2 - 6

Yale Door Closer Delayed Action
Y2600SIL

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Power adjustable closer
• Backcheck is standard
• Delay action is standard
• Heat treated rack & pinion design
• Non-handed
• Built in pressure relief valve to protect against rough use
• Adjustable closing & latching valves
• Parallel arm bracket included
• Forged steel arms passivated against corrosion

Specifications:

• Power: EN adjustable 2 to 6
• Door Weigth: 40 to 120kg
• Door Width: Up to 1400mm
• Maximum closing Torque: 13-54Nm
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: Yes
• Has Holdopen: No
• Parallel Arm Bracket Included: Yes
• Finish: Silver

Standards and Compliance:

• Fire Rated: Has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
• Disabled Access Australian Standard (AS1428.1) Design for access and mobility
