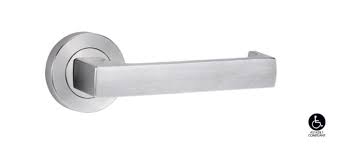

LOCKWOOD SYMPHONY - 1220 - 76

Dimensions

Length: 125mm
Projection: 50mm
Finger clearance: 40mm

Handing
A removable stop screw allows all symmetrically designed levers (e.g. Cadenza) to be handed on site. Levers of asymmetrical design (e.g. Veloce) cannot be reversed. Specify left or right handed when ordering.

Materials
All Lockwood roses and levers contained in the 1220 series are of solid brass construction.

Fixing
Fully concealed on both sides.

Door Thickness
33mm minimum for 5260 Latches and 32mm minimum for Lockwood 3770 Selector & 3570 Synergy Series Mortice Latches. Maximum door thickness 50mm.

Finishes

Standard

• Satin Chrome Brushed - SC

Non Standard

• Architectural Bronze - AZ
• Architectural Bronze Unlaquered - AU
• Antique Copper - AC
• Chrome Plate - CP
• Oil Rubbed Bronze - ORB
• Polished Brass - PB
• Polished Brass Unlacquered - BU
• Polyester Powdercoat - PC
• Satin Brass - SB

Rose Dimensions
