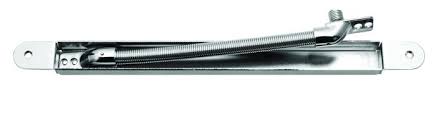

Lockwood LC8810 Power Transfer Lead - 90° Opening - Chrome Plated

The LC8810 power transfer lead covers are designed to ensure unbroken transfer of wires between door and frame in electric locking situations.

• Provides unbroken connection from controller to lock, for cable up to 8mm in diameter
• Vandal-resistant: chrome plated steel flexible
• Completely concealed when the door is closed
• Suitable for hinged doors which open to 90° (maximum of 120°)
• LC8811 as another option is available for use on doors which open more than 120°, or have a gap from pin hinge to door frame of more than 20mm
• Note: Not suitable for centrally pivoted doors
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1: 2005

DATA SHEETS
