Kilargo IS7060SI Astragal seal

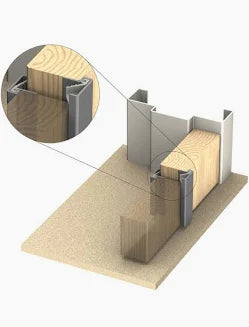

An astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active). It provides an excellent acoustic, smoke, light, dust and weather seal. The thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches.

Gap Size

• Min. 2.5mm / Max. 10mm

Standard Lengths

• 2250mm
• 2500mm
• 3000mm
• Also available in: 250mm increments from 2000mm to 3500mm (Special Order Only)

Standard Finishes

• Silver anodised aluminium with grey silicone gasket
• (black anodised aluminium with black silicone gasket to special order)

Fixing

• A door sequence selector should be considered unless one leaf is intended to be fixed

Approvals

• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies.
• Conforms with NCC Specification C3.4 smoke sealing requirements.
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2.


  MPN	IS7060SI
  Brand	Kilargo

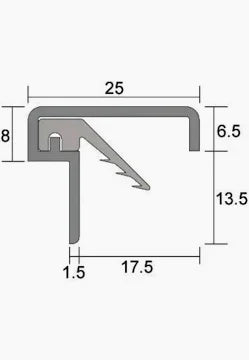

  Product Width	25mm
  Product Warranty	2 Years
  Product Thickness	20mm
  Product Finish or Colour	Clear Anodised (CA)
  Product Material	Aluminium
  Includes Fixing Screws	Yes
  Fire Tested	No
  Acoustic Rated to AS1191 and ISO140.3	Yes
  Suitable for Smoke Doors	Yes
  Suitable for Door Type	Timber Doors
  Contains Intumescent Material	No
  Seal Can Be Installed	Surface Fix
  Gasket / Seal Colour	Grey
  Gasket Material	Silicon
  Min Door Gap	2.5mm
  Max Door Gap	10mm
  Self Adhesive	No
