KILARGO IS5116SI

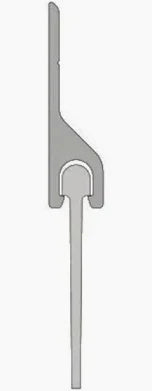

These silicone sweep seals are designed to be used around the head and jambs, door bottom and meeting stiles of single or double swing doors, revolving, tilt-up and roller doors. These seals help protect against ambient and medium temperature smoke, draught and dust, and weather penetration. The slim line carriers are aesthetically angled to avoid dust build-up. These seals provide excellent sealing solutions for pivot action smoke doors and clean room applications.

Gap Size

• Min. 12mm / max. 19mm

Standard Lengths

• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)

Standard Finishes

• Silver anodised aluminium carrier with grey silicone fin
• (Black anodised aluminium carrier with black silicone fin to special order)

Fixing

• Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
• Fixing screws and aggressive backing tape are supplied

Approvals

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Conforms with NCC Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
