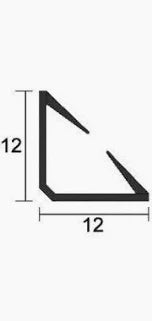

Kilargo IS1212 batwing seal

Description

These self-adhesive perimeter seals are fitted in the rebate of a door frame to contain smoke, sound, draughts, dust and light. Strategically located in the impact free zone, the seal adheres to the frame quickly and easily without having to remove the door.

The seal consists of a semi-rigid flame retardant PVC carrier combined with twin elastomeric sealing blades. An aggressive self-adhesive backing tape is situated on both sides of the carrier.

NB. To ensure proper adhesion, contact surfaces must be clean & any paint well-cured.

Door set standard lengths

  SDS• Single:  1 x 1000mm, 2 x 2100mm

  LSDS• Long Single: 1 x 1000mm, 2 x 2750mm

  DDS• Double:  3 x 2100mm

  LDDS• Long Double: 1 x 2100mm, 2 x 2750mm

Gap Size

• 2-3mm

Standard Colours

• Black
• White
• (Dark brown and grey available to special order)

Approvals

• Fire tested to AS1530 Part 4
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Acoustic ratings to AS1191 and ISO140.3
• Durability tests demonstrating over 100,000 open and close cycles
