KG4002

Intumescent retro-fit seal for upgrading door perimeter gaps where the clearance exceeds the maximum 3mm specified by AS1905/1. Used to upgrade existing fire doors with up to and including 6mm perimeter gaps.

• Can provide up to 2 hours fire resistance on proprietary fire doors.
• Non compliant fire doors can be salvaged.
• Cost-effective solution.
• Easy retro-fit installation.
• Ideal for fire engineered solutions where extra protection is necessary for life safety.

Gap Size

• Upto and including 6mm perimeter gaps (dependant on fire door type).

Available Lengths

• 2100mm
• 2400mm
• 2700mm

Standard Colours

• White
• Silver
• Can be painted on-site

Fixing

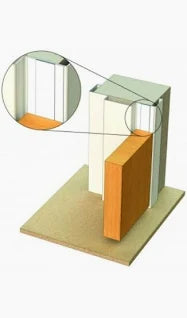

• The KG4002 intumescent seal is simply applied to the top and sides of the door frame with two rows of aggressive self-adhesive tape. No screw fixing required.

Approvals

• Fire tested to AS1530 Part 4 for up to 2 hours on proprietary fire doors in accordance with AS1905 Part 1
