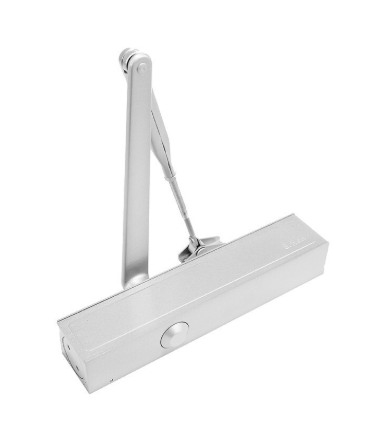

BRITION 1130B HOLD OPEN SILVER - SIZE 1- 6
BRITION 1130B HOLD OPEN SILVER - SIZE 1- 6
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Shipping calculated at checkout.
The Briton 1130 Series is a non-handed slimline closer designed to be used on commercial interior/exterior wooden and metal doors e.g. storeroom, office and toilet doors.
Door closing is hydraulically controlled, with adjustable valve regulators, back check, closing and latching speed, and spring strength power control to give the desired closing speed.
The 1130 has a precision rack and pinion mechanism, and is easily mounted to the surface of door or the top jamb.
This closer is hold open with track arm versions also available.
- Universal, fully reversible, non-handed door closer
- Closer body constructed from pressure die cast aluminium with steel rack and pinion
- Tested to 500,000 cycles
- Fully adjustable 1-6 strength regular arm
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for controlling backcheck, closing, delayed action and latching speeds
MPN | B1130B-HO-SE |
---|---|
Brand | Briton |
Product Width | 48mm |
Product Height | 60mm |
Product Warranty | 10 Years |
Product Length | 297mm |
Product Finish or Colour | Silver (SIL) |
Product Material | Cast Aluminium |
Includes Fixing Screws | Yes |
AS1428.1 Compliant | Yes (when set to size 1) |
Fire Tested | Yes |
Spring Strength | Size 1-6 (EN1-6) |
Back Check Valve | Yes |
Hold Open Type | Built-in |
Cam Action | No |
Adjustable Closing Speed | Yes |
Delayed Action | No |
Arm Type | Hold Open Standard Arm |
Push / Pull Side Mounting | Both |
Max Door Width | 1400mm |
Suitable for | Commercial |
