BRITION 1120B SILVER - SIZE 1- 6

BRITION 1120B SILVER - SIZE 1- 6

Regular price $189.00 AUD
Regular price Sale price $189.00 AUD
Sale Sold out
Shipping calculated at checkout.

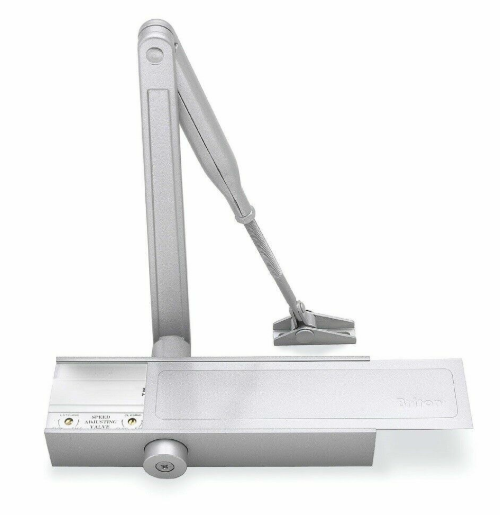

The Briton 1130 Series is a non-handed, slimline closer designed to be used on commercial interior/exterior wooden and metal doors e.g. storeroom, office and toilet doors.
Door closing is hydraulically controlled, with adjustable valve regulators, back check, closing and latching speed, and spring strength power control to give the desiredclosing speed.

The 1130 has a precision rack and pinion mechanism, and is easily mounted to the surface of door or the top jamb.
Hold open and track arm versions also available.

  • Universal, fully reversible, non-handed door closer
  • Closer body constructed from pressure die cast aluminium with steel rack and pinion
  • Tested to 500,000 cycles
  • Fully adjustable 1-6 strength regular arm
  • Factory set to strength 3
  • This closer offers 3 installation options,
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
  • Independent adjustment valves for controlling backcheck, closing, delayed action and latching speeds
MPN B1130B-SE
Brand Briton
Product Width 48mm
Product Height 60mm
Product Warranty 10 Years
Product Length 297mm
Product Finish or Colour Silver (SIL)
Product Material Cast Aluminium
Includes Fixing Screws Yes
AS1428.1 Compliant  Yes (when set to size 1)
Fire Tested  Yes
Spring Strength Size 1-6 (EN1-6)
Back Check Valve Yes
Hold Open Type Optional Accessory Purchase
Cam Action No
Adjustable Closing Speed Yes
Delayed Action No
Arm Type Standard Arm
Push / Pull Side Mounting Both
Includes PA Bracket Yes
Max Door Width 1400mm
Suitable for Commercial
